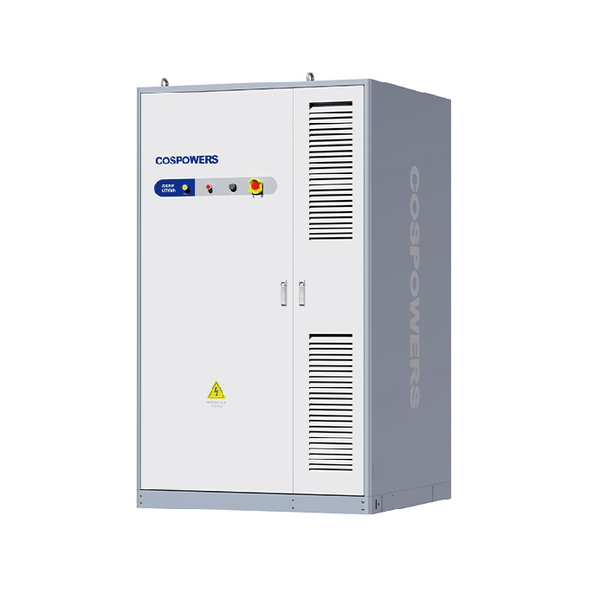

PowerEco-417kWh
Liquid Cooling Series

PowerEco-417kWh

Key Features
  • Flexible expansion, one machine multi-effect matching a variety of application scenarios
  • Fingertip monitoring cloud maintenance
  • Highly integrated design AC and DC integrated
  • Multiple protection systems

Login to see Pricing

Get access to exclusive pricing and detailed product information

Specifications

Technical Specifications

Parameters/ModelPowerEco–372kWhPowerEco–417kWh
Battery parameters
Cell Capacity280Ah (LFP)314Ah (LFP)
Nominal Capacity372kWh417kWh
Nominal Voltage1331.2V1331.2V
Operating Voltage Range1164.8~1456V1164.8~1456V
C Rate≤0.5C≤0.5C
HMI7 Inch touch screen7 Inch touch screen
System level parameters
Fire ProtectionPerfluoroketone FirefightingPerfluoroketone Firefighting
Cooling MethodLiquid CoolingLiquid Cooling
Humidity5~95%, RH5~95%, RH
Working Temp.–10~55℃–10~55℃
IP ClassIP54IP54
Dimension<140014002350mm<140014002350mm
Weight3500Kg3600Kg
Others
CertificationUndergoing CertificationUndergoing Certification
