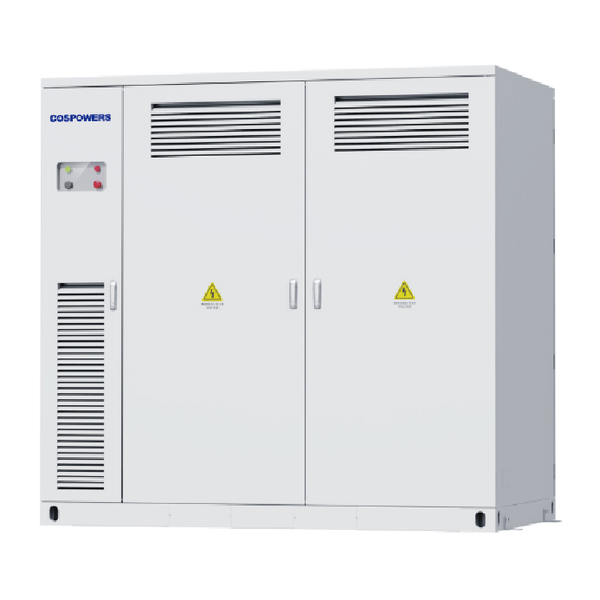

PowerEco-250kW/464kWh
Liquid Cooling Series

PowerEco-250kW/464kWh

Key Features
  • Flexible expansion, one machine multi-effect matching a variety of application scenarios
  • Fingertip monitoring cloud maintenance
  • Highly integrated design AC and DC integrated
  • Multiple protection systems

Login to see Pricing

Get access to exclusive pricing and detailed product information

Specifications

Technical Specifications

Parameters/ModelPowerEco–250kW/464kWhPowerEco–250kW/522kWh
DC side parameter
Max Voltage950V950V
Max Current340A406A
Voltage Range650~950V650~950V
AC grid connection parameter
Max. Apparent Output275kW275kW
Max. Input Active Power250kW250kW
Nominal Voltage400Vac, 3P3W+PE / 3P4W+PE400Vac, 3P3W+PE / 3P4W+PE
Max. Input Current400A400A
Nominal Input Frequency50/60Hz50/60Hz
AC off-grid parameter
Nominal Voltage400V, 3P3W+PE / 3P4W+PE400V, 3P3W+PE / 3P4W+PE
Max Output Current416A416A
Nominal Frequency50/60Hz50/60Hz
Battery parameters
Cell Capacity280Ah (LFP)314Ah (LFP)
Capacity464kWh522kWh
Nominal Voltage832V832V
Voltage Range728~910V728~910V
C Rate≤0.5C≤0.5C
HMI7 Inch touch screen7 Inch touch screen
System level parameters
Fire SafetyPerfluorohexane fire protection/AerosolPerfluorohexane fire protection/Aerosol
Cooling MethodLiquid CoolingLiquid Cooling
Operating Temp.–20~55℃–20~55℃
IP DegreeIP54IP54
Dimension (WDH)240014002300mm240014002300mm
Weight<4500Kg<4600Kg
Others
MPPT50kW*4 (Optional)50kW*4 (Optional)
STS//
CertificationUndergoing CertificationUndergoing Certification
