Embedded Series

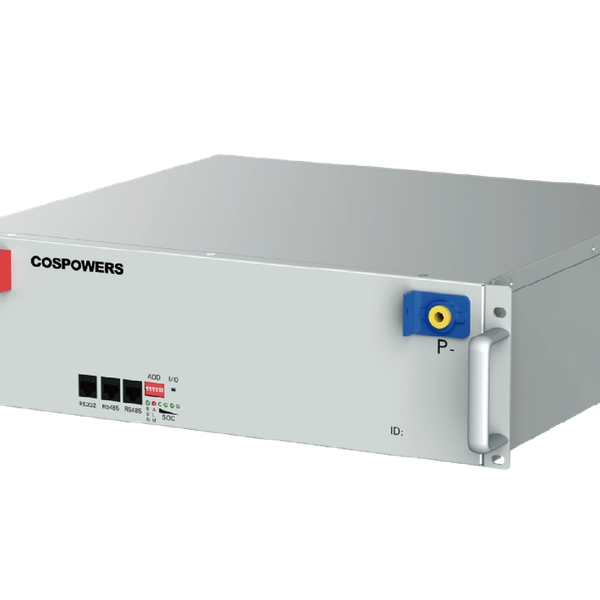

EMBEDDED SERIES-3U
Key Features
- Good performance in high-temperature environments Natural cooling at ambient temperature<50°C,saving energy
- Anti-theft function Software anti-theft, communication anti-theft, gyroscope anti-theft and other functions are optional
- Easy for operation and maintenance Integrated BMS design, battery supports SOC self-management、SOH management and other functions
- Service life 3000times@0.5C 80%DOD，25℃
- Intelligent Protection With voltage, current and temperature intelligent protection unctions
Login to see Pricing
Get access to exclusive pricing and detailed product information
Specifications
Product Properties
Mobile communication base station
microwave communication equipment
satellite earth station
Data center
Technical Specifications
| Model | CF48100T | CF48100T | CF48150T |
|---|---|---|---|
| Connection method | 1P15S | 1P16S | 1P15S |
| Rated energy | 4800Wh | 5120Wh | 7200Wh |
| Rated capacity | 100Ah | 100Ah | 150Ah |
| Rated voltage | 48V | 51.2V | 51.2V |
| Voltage range | 42–52.5V | 43.2–56.8V | 43.2–56.8V |
| Charging current | 50A | 50A | 75A |
| Discharge current | 100A | 100A | 150A |
| Operating temperature | charge:0–50°C;discharge:-- | 20–55°C | 20–55°C;Storage:–30–45°C |
| Self-discharging rate | ≤3%(0–30°C/3 months) | ≤3%(0–30°C/3 months) | |
| Size(WDH) | 440420130mm | 440420130mm | 440525130mm |
| Weight | 41Kg | 43Kg | 56Kg |
| Communication interface | RS485/RS232/CAN | RS485/RS232/CAN | |
| Charging current Limit function | With the function of automatically entering the current-limiting charging mode when detecting the battery cell: low voltage, high voltage, low temperature, high temperature, poor consistency, charging over-current protection | With the function of automatically entering the current-limiting charging mode when detecting the battery cell: low voltage, high voltage, low temperature, high temperature, poor consistency, charging over-current protection | |
| Voltage acquisition accuracy | 0–5V, Detection accuracy <10mV; 0–60V Detection accuracy <0.5% | 0–5V, Detection accuracy <10mV; 0–60V Detection accuracy <0.5% | |
| Current acquisition accuracy | Detection accuracy ≤1%(0.5C charging/discharging) | Detection accuracy ≤1%(0.5C charging/discharging) | |
| Anti–theft function | Software anti–theft, communication anti–theft, gyroscope anti–theft and other functions are optional | Software anti–theft, communication anti–theft, gyroscope anti–theft and other functions are optional | |
| Certification | IEC62619, IEC62620, UL1973, UL9540A, UN38.3, ROHS, TLC, EMC | IEC62619, IEC62620, UL1973, UL9540A, UN38.3, ROHS, TLC, EMC | IEC62619, IEC62620, UL1973, UN38.3, ROHS, EMC |
